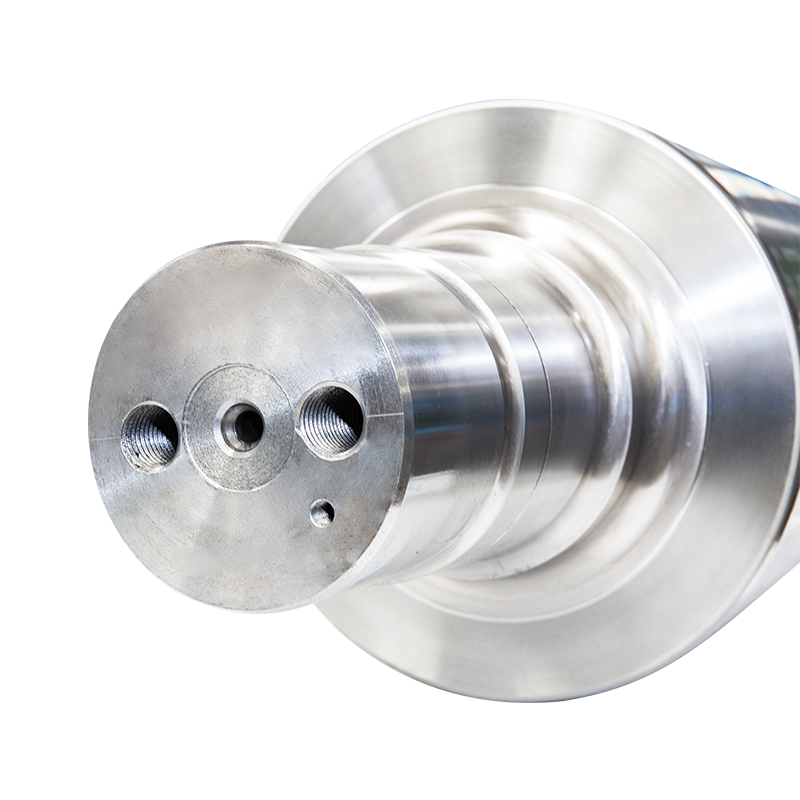

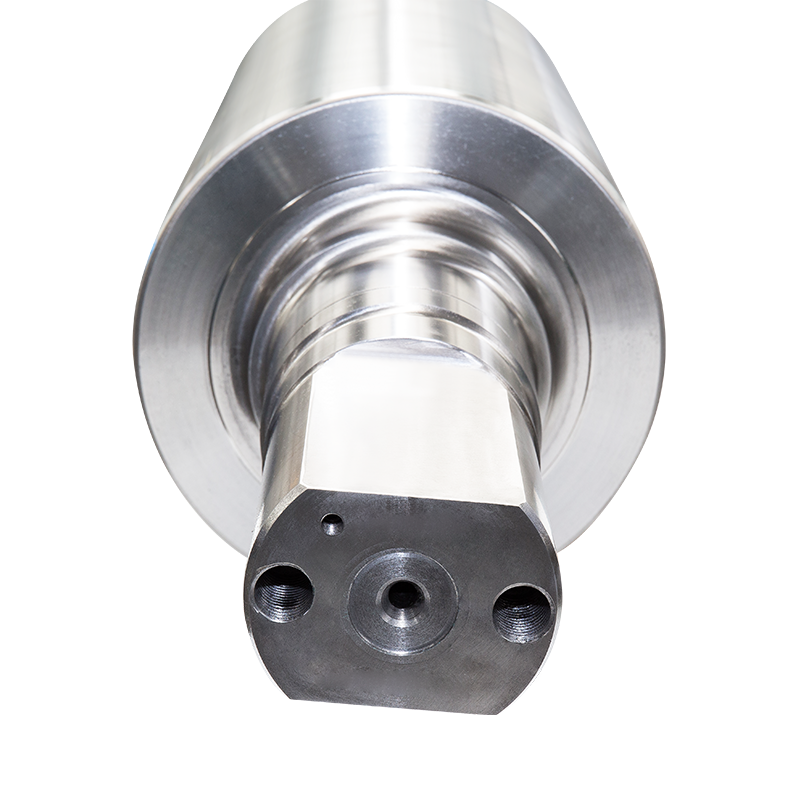

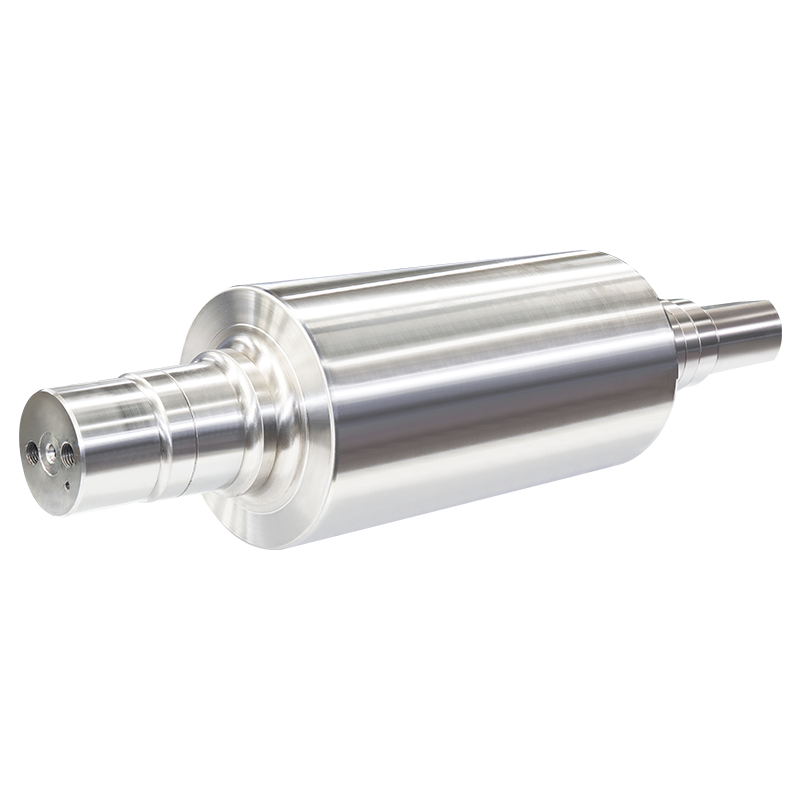

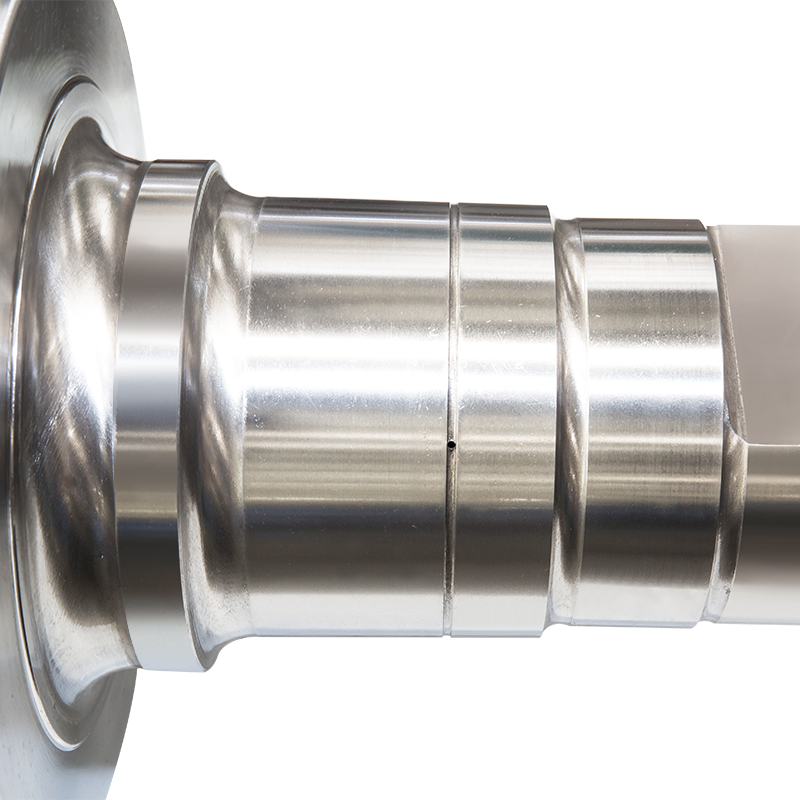

Chilled Hard Cast Iron Roll Grade III (CCIII) with High Hardness 65-80 HSD

Chilled Hard Cast Iron Roll III (CCIII) is made from a high-chromium-molybdenum alloy that is extremely hard and wear-resistant to withstand heavy loads and high-wear environments. Its hardness can reach 65-80 HSD, and it has good thermal conductivity and heat dissipation. It can dissipate heat evenly, prevent local overheating of the roll body, reduce thermal deformation and thermal stress, and improve rolling accuracy. It has good cooling and hardening properties, can quickly dissipate heat during the rolling process, maintain the hardness and shape stability of the roll, and ensure the dimensional accuracy of the rolled products. It is suitable for narrow-strip rolling mills and can meet the rolling needs of narrow-strip metal billets, including narrow-strip steel and aluminum of different sizes and materials. It can ensure that the rolled metal products have high-quality surface finish and dimensional accuracy.

Hardness HSD: 65-80
Nickel composition %: 2.01-3.0
Suitable for racks: refined and rolled
Usage: Small section mills, wire mills, hot sheet mills, temper mills.

Inquiry Us
  • Chilled Hard Cast Iron Roll Grade III (CCIII) with High Hardness 65-80 HSD
  • Chilled Hard Cast Iron Roll Grade III (CCIII) with High Hardness 65-80 HSD
  • Chilled Hard Cast Iron Roll Grade III (CCIII) with High Hardness 65-80 HSD
  • Chilled Hard Cast Iron Roll Grade III (CCIII) with High Hardness 65-80 HSD
PREV：Chilled Hard Cast Iron Roll Grade IV (CCIV) for Wire Mill
NEXT：No next article

Performance Parameter

Clear Chilled Rolls (CC)

Chemical Composition %
Symbol C Si Mn P S Cr Ni Mo
CCⅢ 2.90-3.60 0.25-0.80 0.20-1.00 ≤0.40 ≤0.08 0.50-1.50 2.01-3.00 0.20-0.60
CCⅣ 2.90-3.60 0.25-0.80 0.20-1.00 ≤0.40 ≤0.08 0.50-1.70 3.01-4.50 0.20-0.60



Prosperities & Application
Symbol Hardness Tensile Strength Dimension Application
HSD MPa MM
CCⅢ 65-80 ≥350 ￠300-800 Small section mills, wire mills, hot sheet mills, temper mills.
CCⅣ 70-85 ≥350
