Graphite Steel Rolls (GS)

Home / Product / Cast Steel Roll / Graphite Steel Rolls (GS) / Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill

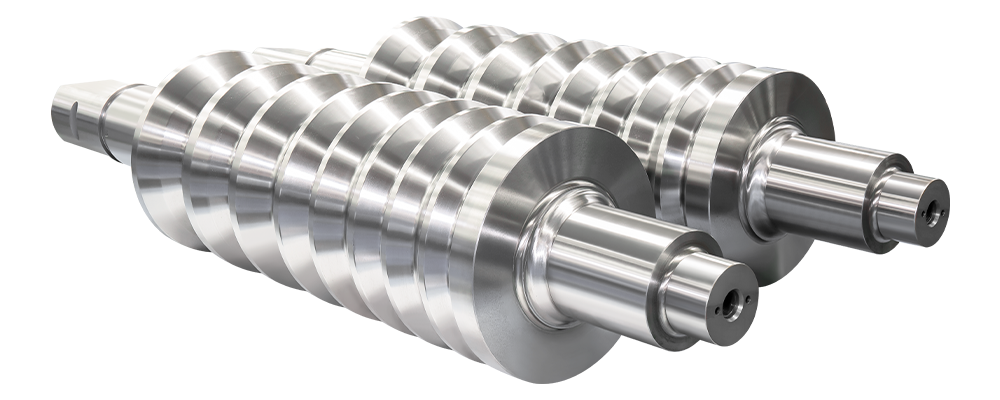

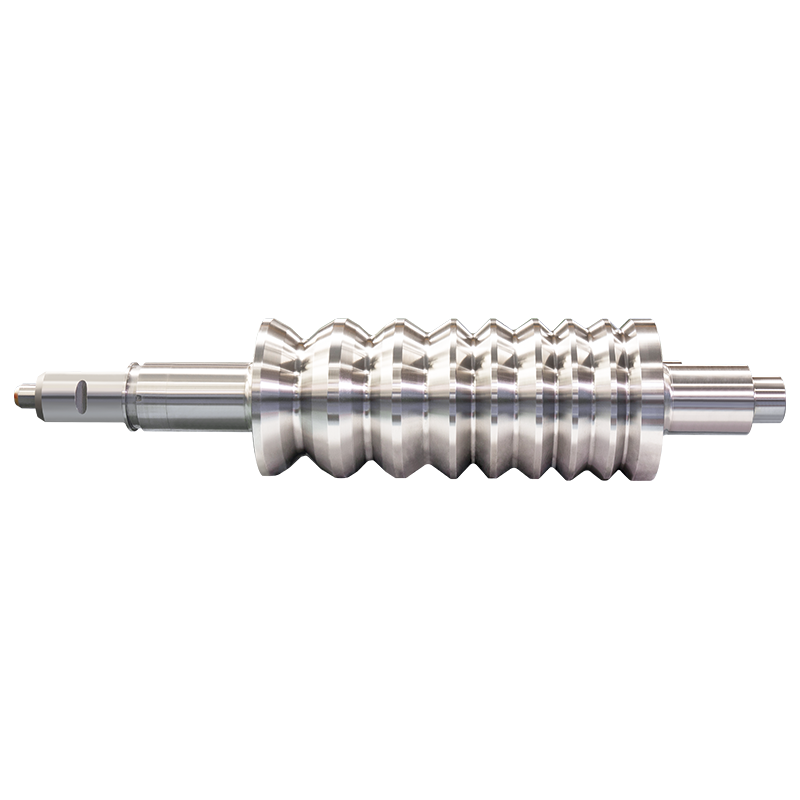

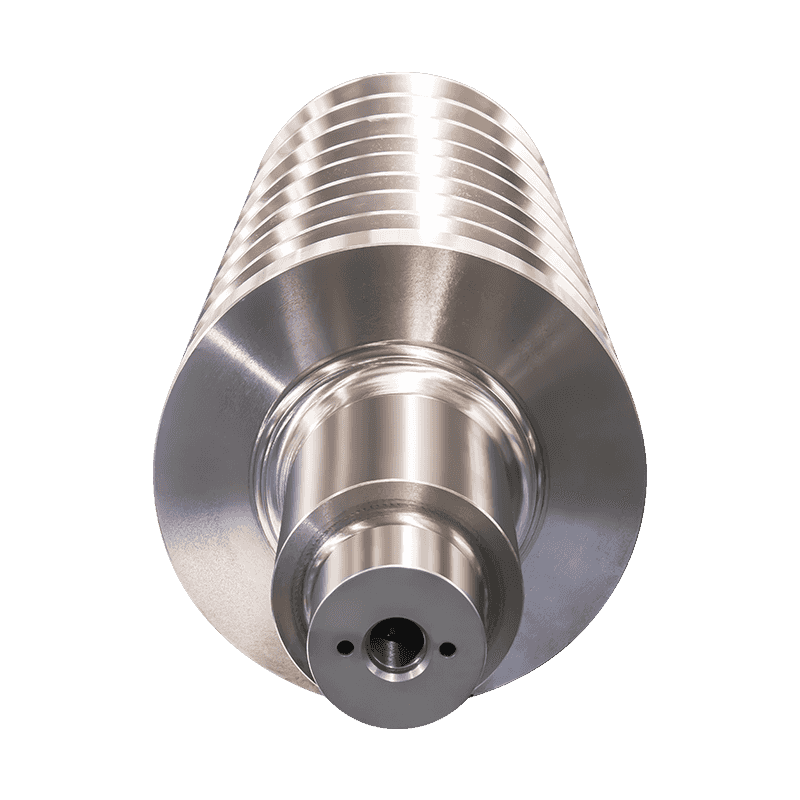

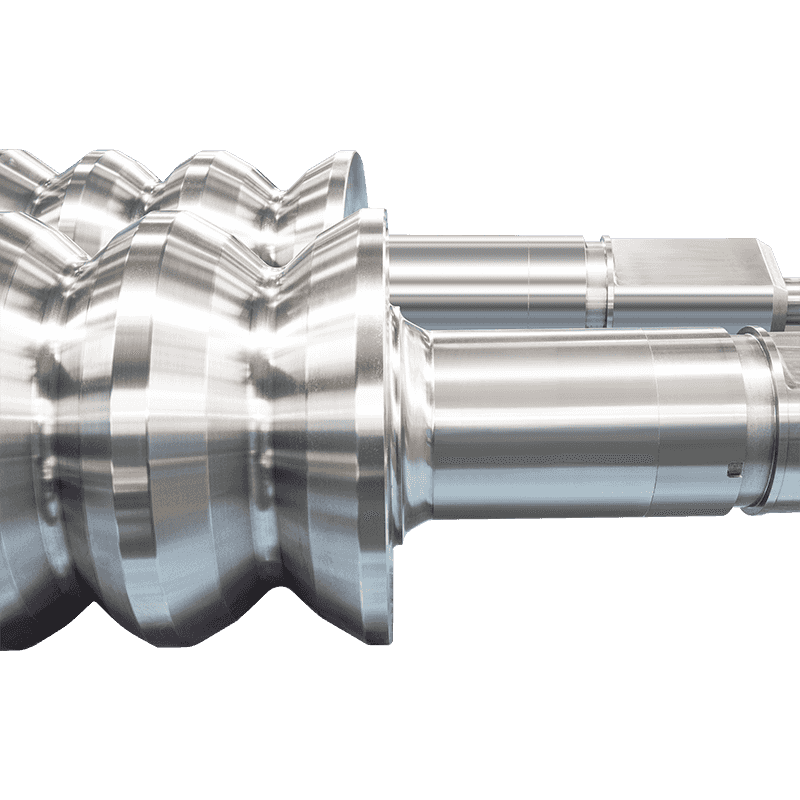

Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill

Graphite steel roll 160 (GS160) for roughing mill is a common roll material with high graphite content, which makes the roll have good self-lubricating and thermal conductivity, which is beneficial to reducing friction and heat accumulation and extending the life of the roll. service life. It has good wear resistance and can withstand the friction and wear of the metal blank during high-speed rolling. It can withstand large rolling pressure and impact load. Graphite steel rollers 160 (GS160) for roughing mills have wear resistance and high strength. , cost-effectiveness, and other advantages, it is a commonly used roll material with good performance and is widely used in the field of metal processing.

Hardness HSD: 45-55
Nickel composition %: 0.2-1.0
Suitable for racks: roughing

Inquiry Us
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
  • Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
PREV：Graphite Steel Rolls Grade 190 (GS190) for Blooming mills
NEXT：Graphite Steel Rolls Grade 150 (GS150) for Section Mill

Performance Parameter

Graphite Steel Roll (GS)

 Chemical Composition %
Symbol C Si Mn Cr Ni Mo P S
GS150 1.40-1.60 1.00-1.70 0.60-1.00 0.60-1.00 0.20-1.00 0.20-0.50 ≤0.035 ≤0.030
GS160 1.50-1.70 0.80-1.50 0.60-1.00 0.50-1.50 0.20-1.00 0.20-0.80 ≤0.035 ≤0.030
GS190 1.80-2.00 0.80-1.50 0.60-1.00 0.50-2.00 0.60-2.20 0.20-0.80 ≤0.035 ≤0.030



Prosperities & Application
Symbol Hardness Dimension Application
HSD MM
GS150 40-50 ￠400-1400 Section mills, bar and wire mills; blooming mills; hot strip roughing rolls and edger rolls; and section universal mills.
GS160 45-55
GS190 50-60;55-65
